Technical overview
Technical overview
Spec sheet
Need technical information about this profile system? Click to download a dedicated spec sheet.- Dimensions
- 77mm x 77mm (h x w)
- Base thickness
- 1.5mm
- Techniques:
- Wall, Ceiling
- Indoor/Outdoor
- Indoor
- Finish
-
Fine structured scratch resistant powder coating:
white structure - IP rating
- IP20
- Glow Wire Test
- 960°C
- CRI
- 90+
- Warranty
- 5 years on LED lamps, 5 years on drivers
- Linear Lighting module
-
Linear LED Strip 24V - diffusor included
2700K, 3000K, 4000K
Non-Dimmable, 1-10V, Dali, Pushdim

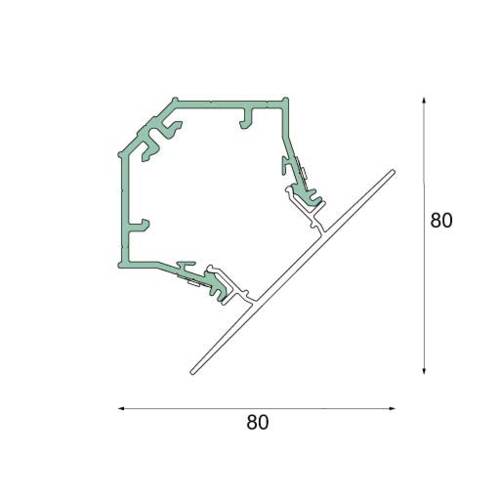

Base Profile Como Corner
This base profile is merely 1.5mm thick and made of aluminium to ensure minimum weight, strength and durability. It comes with a maximum extruded length of 4 meters, thus offering the double benefit of preventing bending during transportation and making the profile easy to handle during installation.

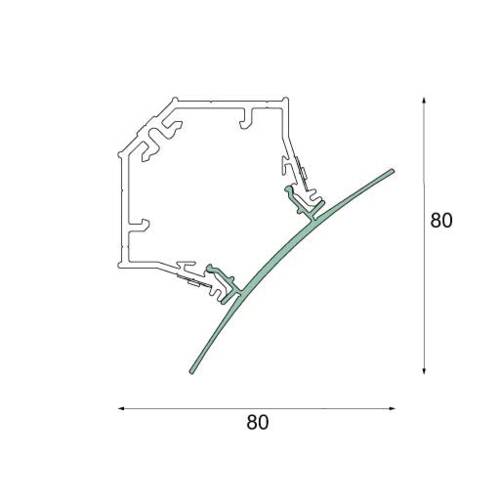

Curved Cover Como Corner
This aluminium cover matches the material of the base profile to ensure a consistent look. Click in-and-out, even after installation, to remove it without having to dismount the profile. Choose a curved cover to add softness to your design.

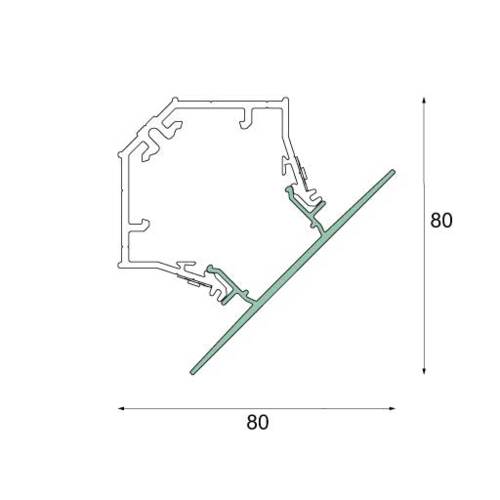

Straight Cover Como Corner
This aluminium cover matches the material of the base profile to ensure a consistent look. Click in-and-out, even after installation, to remove it without having to dismount the profile. Chose a straight cover for a more timeless design.
Linear light modules
Linear light modules
Linear LED strip 24V Not Mounted
- 2700K, 3000K, 4000K
- Non-dimmabe, 1-10V, Dali/Pushdim
- 1000lm/m, 2000lm/m, 3600lm/m
Como Corner Surface
in a nutshell
