Technical overview
Technical overview
Spec sheet
Need technical information about this profile system? Click to download a dedicated spec sheet.- Dimensions
- 67mm x 70mm (h x w)
- Base thickness
- 1.5mm
- Techniques:
- Ceiling
- Indoor/Outdoor
- Indoor
- Finish
-
Fine structured scratch resistant powder coating:
White structure, black structure - IP rating
- IP20
- Glow Wire Test
- 960°C
- CRI
- 90+
- Warranty
- 5 years on LED lamps, 2 years on drivers
- Linear Lighting module
-
High power LED line
2700K, 3000K, 4000K
Non-dimmable, Dali/Pushdim: Flicker-free (AM dimming)
PMMA lenses
![Base Profile Drupl 70 Recessed](https://mdlr-prd-pltn-ods-web-assets.azureedge.net/modular/asset/84125/LINED-DRUPL70-FLANGE-CURVED-BASE-01.jpg?rendition=productdetail&v=Ni8xNi8yMDIyIDI6Mjc6MzQgUE05MzQ3)

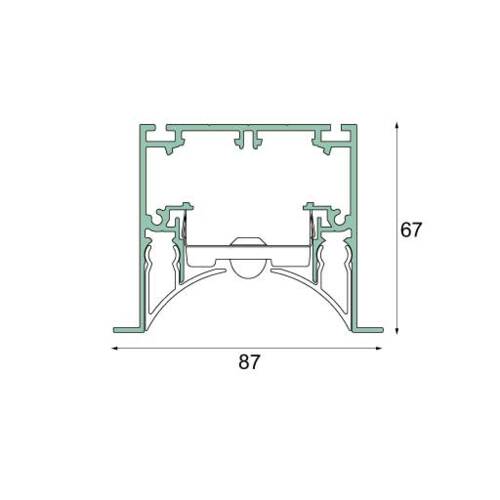

Base Profile Drupl 70 Recessed
This base profile is merely 1.5mm thick and made of aluminium to ensure minimum weight as well as more strength and durability. It comes with a maximum extruded length of 4 meters, thus offering the double benefit of preventing bending during transportation and making the profile easy to handle during installation.
![Curved Cover Drupl 70 Recessed](https://mdlr-prd-pltn-ods-web-assets.azureedge.net/modular/asset/84127/LINED-DRUPL70-FLANGE-CURVED-COVER-01.jpg?rendition=productdetail&v=Ni8xNi8yMDIyIDI6Mjc6MzUgUE05MTAy)

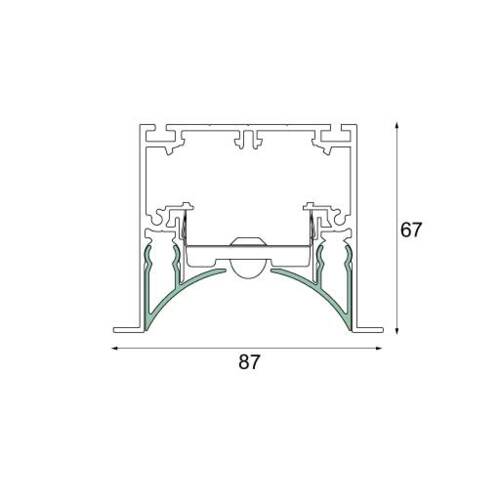

Curved Cover Drupl 70 Recessed
This aluminium cover matches the material of the base profile to ensure a consistent look. Click in-and-out, even after installation, to remove it without having to dismount the profile. The cover comes in a selection of colours to offer the choice of adding an accent or going monochrome for a more understated look. Choose a curved to add softness to your design.
![Straight Cover Drupl 70 Recessed](https://mdlr-prd-pltn-ods-web-assets.azureedge.net/modular/asset/84124/LINED-DRUPL70-FLANGE-STRAIGHT-COVER-01.jpg?rendition=productdetail&v=Ni8xNi8yMDIyIDI6Mjc6MzMgUE04NjE0)

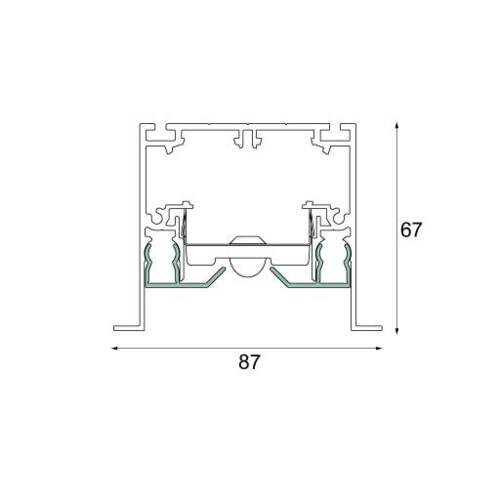

Straight Cover Drupl 70 Recessed
This aluminium cover matches the material of the base profile to ensure a consistent look. Click in-and-out, even after installation, to remove it without having to dismount the profile. The cover comes in a selection of colours to offer the choice of adding an accent or going monochrome for a more understated look. Chose a straight cover for a more timeless design.
Linear light modules
Linear light modules
Linear LED Fortimo LEDline
- 2700K, 3000K, 4000K
- Non-dimmable, Dali/Pushdim
- >2000lm/m
![](/globalassets/icons/Casambi-transparant.png?v=49d7d8)
![](/globalassets/icons/hue-transparant.png?v=4a6e2c)
Linear LED Fortimo LEDline Preset 50%
- 2700K, 3000K, 4000K
- Non-dimmable
- >1000lm/m
