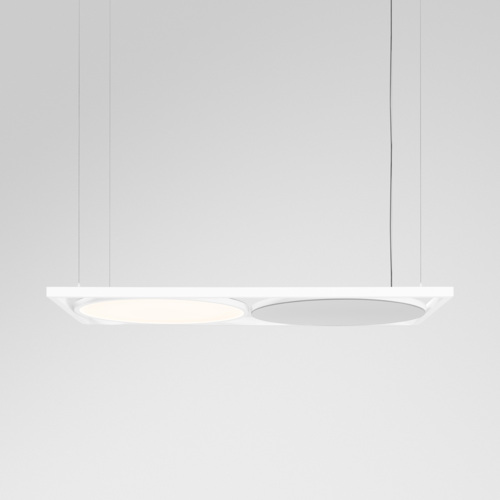

Geometry Suspended Adjustable 672x1288 2x

13750263
LED 3000K DE White Structure - Silver Chrome
3000K LED Remote Driver Excluded
Geometry Suspended Adjustable 672x1288 2x
Datasheet Technical support
Request a quote
Specifications
1 Led Drivers 2 Installation Accessories 3 Smart Lighting Accessories
Compatible with Downloads

Specifications
LINED_137502XX_01.pdf
Light Source Type
LED
Input Voltage
24vdc
IP Rating
20
LED Type
LED flexible PCB
Light Sources
2
Colour Temperature
3000K
Binning (SDCM)
3
Lifetime
L80B10 @50,000 Hours

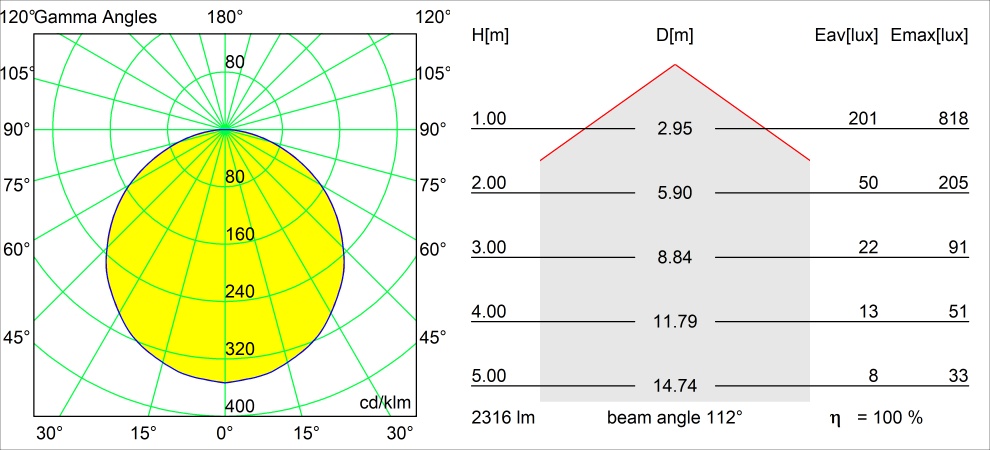

Measured Beam Angle (°)
112
CIE Flux Code
47, 79, 95, 100, 100
Electrical Class
III
Glow Wire Rating
650°C
Indoor/Outdoor
Indoor
Gross Weight (g)
22500
Net Weight (g)
14300
Delivered Lumens (lm)
2317
LED Connected Load (W)
21
Efficacy (lm/W)
110
Glare Rating (UGR)
20
Modular logo Go to top 1 Led Drivers 2 Installation Accessories 3 Smart Lighting Accessories

1. Led Drivers
Constant Voltage 24V LED Driver
Required

Constant Voltage 24V LED Driver

93009504
LED Driver Constant Voltage 24V Surface (For Suspended Mounting) Non-Dim 100W (Incl. Power Feed Cable 2000) White Structure
93009505
LED Driver Constant Voltage 24V Surface (For Suspended Mounting) Non-Dim 100W (Incl. Power Feed Cable 2000) Black Structure
98009504
LED Driver Constant Voltage 24V Surface (For Suspended Mounting) DALI/Push-Dim 100W (Incl. Power Feed Cable 2000) White Structure
98009505
LED Driver Constant Voltage 24V Surface (For Suspended Mounting) DALI/Push-Dim 100W (Incl. Power Feed Cable 2000) Black Structure
LED Driver 24V
Required

LED Driver 24V

12409730
LED Driver Constant Voltage 24V 0-10V/1-10V 60W
12409830
LED Driver Constant Voltage 24V 0-10V/1-10V 100W
13550830
LED Driver Constant Voltage 24V DALI 100W
13550930
LED Driver Constant Voltage 24V DALI 150W

2. Installation Accessories
Power Feed Canopy
Required

Power Feed Canopy

13720009
Power Feed Canopy Recessed DE (Incl. Power Feed Cable 2000) White Structure
13720032
Power Feed Canopy Recessed DE (Incl. Power Feed Cable 2000) Black Structure
13720109
Power Feed Canopy Recessed DE (Incl. Power Feed Cable 6000) White Structure
13720132
Power Feed Canopy Recessed DE (Incl. Power Feed Cable 6000) Black Structure
13720209
Power Feed Canopy Surface DE (Incl. Power Feed Cable 2000) White Structure
13720232
Power Feed Canopy Surface DE (Incl. Power Feed Cable 2000) Black Structure
13720309
Power Feed Canopy Surface DE (Incl. Power Feed Cable 6000) White Structure
13720332
Power Feed Canopy Surface DE (Incl. Power Feed Cable 6000) Black Structure
Suspension Kit Geometry
Required

Suspension Kit Geometry

11061009
Suspension 4000 Geometry 672x672/672x1288 (4) White Structure
11061032
Suspension 4000 Geometry 672x672/672x1288 (4) Black Structure
11061109
Suspension 8000 Geometry 672x672/672x1288 (4) White Structure
11061132
Suspension 8000 Geometry 672x672/672x1288 (4) Black Structure
Mechanical Connection Geometry

Mechanical Connection Geometry

13750000
Connection Mechanical Geometry

3. Smart Lighting Accessories
Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000152
Switch Dimmer Hue White
70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI

Downloads

Download all
  • Datasheet
    • INST_137502XX_A1_02.pdf
    • INST_137502XX_B1_03.pdf
  • LDT files
  • IES files
  • POLAR files
  • CRI files
  • TM30 files
  • Tender text
    • REACH_GEOMETRY_06.pdf
    • EPD_MODULAR_GEOMETRY_SUSPENDED_ADJUSTABLE_672x1288_2X_LED_EU_01.pdf
    • EPD_MODULAR_GEOMETRY_SUSPENDED_ADJUSTABLE_672x1288_2X_ LED_CHROME_EU_ 01.pdf
    • CE_13750263_04.pdf
    • UKCA_13750263_02.pdf
  • Line drawings
  • SKP files
    • CAD2D_SURF_GEOMETRY_01.dwg
    • SKP_137502XX_GEOMETRY-SUSP-ADJ-672X1288 2XLED_01.skp
    • FBX_137502XX_GEOMETRY-SUSP-ADJ-672X1288 2XLED_01.fbx
    • CAD3D_137502XX_GEOMETRY-SUSP-ADJ-672X1288 2XLED_01.dwg
    • OBJ_137502XX_GEOMETRY-SUSP-ADJ-672X1288 2XLED_01.obj
    • 3DS_137502XX_GEOMETRY-SUSP-ADJ-672X1288 2XLED_01.3ds
  • Energy Label
