  1. Go back
Click to share

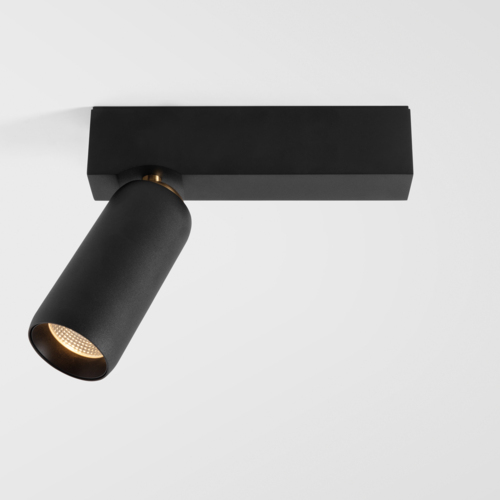

Kogel Surface Adjustable 58 1x

13560332
LED 2700K Trailing Edge DI Black Structure
10.4W 651lm 63lm/W CRI90
2700K LED Driver Included
Kogel Surface Adjustable 58 1x
Datasheet Technical support
Request a quote
Specifications
1 Optical Accessories 2 Smart Lighting Accessories
Compatible with Downloads

Specifications
LINED_135600XX_01.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
230v
IP Rating
20
LED Type
LED COB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B10 @50,000 Hours
CIE Flux Code
98, 100, 100, 100, 66
Electrical Class
I
Dimming Protocol
Trailing edge
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
H 360° v 50°
Gross Weight (g)
1414
Net Weight (g)
1060
Delivered Lumens (lm)
651
Luminaire Power (W)
10.4
Efficacy (lm/W)
63
Glare Rating (UGR)
20
Modular logo Go to top 1 Optical Accessories 2 Smart Lighting Accessories

1. Optical Accessories
Lens 51
Required

Lens 51

10222630
Lens 51 Spot
10222730
Lens 51 Medium
10222830
Lens 51 Flood
10222930
Lens 51 Wide Flood
Magnetic Reflector 51
Required

Magnetic Reflector 51

10219930
Reflector 51 Spot Aluminium Anodised
10220030
Reflector 51 Medium Aluminium Anodised
10220130
Reflector 51 Flood Aluminium Anodised

2. Smart Lighting Accessories
Casambi Module

Casambi Module

13470101
Dim Module Casambi Trailing Edge
Casambi Switch

Casambi Switch

13470109
Switch Casambi White

Downloads

Download all
  • Datasheet
  • Installation instructions
    • LDT_135603XX_SURF_KOGEL_2700K_01.zip
    • LDT_135603XX_SURF_KOGEL_2700K_01.zip
    • IES_135603XX_SURF_KOGEL_2700K_01.zip
    • IES_135603XX_SURF_KOGEL_2700K_01.zip
    • POLB_135603XX_SURF_KOGEL_2700K_01.zip
    • POLB_135603XX_SURF_KOGEL_2700K_01.zip
    • CRI_1015283_V6HD-G8 927.JPG
    • CRI_1015285_V6HD-G8 935.JPG
    • CRI_1015284_V6HD-G8 930.JPG
    • CRI_1015286_V6HD-G8 940.JPG
    • TM30_1015284_V6HD-G8 930.JPG
    • TM30_1015285_V6HD-G8 935.JPG
    • TM30_1015283_V6HD-G8 927.JPG
    • TM30_1015286_V6HD-G8 940.JPG
    • TENDER_KOGEL_EN_02.pdf
    • TENDER_KOGEL_EN_02.pdf
    • TENDER_KOGEL_EN_02.pdf
    • REACH_KOGEL_06.pdf
    • CE_13560332_04.pdf
    • UKCA_13560332_02.pdf
  • Line drawings
  • SKP files
    • OBJ_135600XX_SURF_KOGEL-1X_01.obj
    • SKP_135600XX_SURF_KOGEL-1X_01.skp
    • FBX_135600XX_SURF_KOGEL-1X_01.fbx
    • CAD3D_135600XX_SURF_KOGEL 1XLED_02.zip
    • CAD2D_SURF_KOGEL_01.dwg
    • 3DS_135600XX_SURF_KOGEL-1X_01.3ds
    • ELABEL_Bridgelux_V6HDG8_2700K.pdf
    • ELABEL_Bridgelux_V6HDG8_3000K.pdf
    • ELABEL_Bridgelux_V6HDG8_3500K.pdf
    • ELABEL_Bridgelux_V6HDG8_4000K.pdf
