  1. Go back
Click to share

Mini-Multiple Recessed Trimless Adjustable M-LED 4x

13131309
DE White Structure
Remote Driver Excluded
Mini-Multiple Recessed Trimless Adjustable M-LED 4x
Datasheet Technical support
Request a Project Consultation
Specifications
1 Compatible light modules 2 M-LED Module 3 Installation Accessories 4 Smart Lighting Accessories
Downloads

Specifications
LINED_131313XX_V0.pdf
Cut-Out Size (mm)
L 203 W 203
Mounting Depth (mm)
120
Light Source Type
for M-LED
Lamp Included
No
Input Voltage
Constant current driver required
IP Rating
20
Electrical Class
III
Gross Weight (g)
1532
Net Weight (g)
1172
Modular logo Go to top 1 Compatible light modules 2 M-LED Module 3 Installation Accessories 4 Smart Lighting Accessories

1. Compatible light modules

2. M-LED Module
M-LED Module 70
Required

M-LED Module 70

14070002
M-LED Module 70 1x LED 2700K Spot DE Black Matt
14070009
M-LED Module 70 1x LED 2700K Spot DE White Structure
14070102
M-LED Module 70 1x LED 2700K Medium DE Black Matt
14070109
M-LED Module 70 1x LED 2700K Medium DE White Structure
14070202
M-LED Module 70 1x LED 2700K Flood DE Black Matt
14070209
M-LED Module 70 1x LED 2700K Flood DE White Structure
14070302
M-LED Module 70 1x LED 3000K Spot DE Black Matt
14070309
M-LED Module 70 1x LED 3000K Spot DE White Structure
14070402
M-LED Module 70 1x LED 3000K Medium DE Black Matt
14070409
M-LED Module 70 1x LED 3000K Medium DE White Structure
14070502
M-LED Module 70 1x LED 3000K Flood DE Black Matt
14070509
M-LED Module 70 1x LED 3000K Flood DE White Structure
14070602
M-LED Module 70 1x LED 4000K Spot DE Black Matt
14070609
M-LED Module 70 1x LED 4000K Spot DE White Structure
14070702
M-LED Module 70 1x LED 4000K Medium DE Black Matt
14070709
M-LED Module 70 1x LED 4000K Medium DE White Structure
14070802
M-LED Module 70 1x LED 4000K Flood DE Black Matt
14070809
M-LED Module 70 1x LED 4000K Flood DE White Structure
14070902
M-LED Module 70 1x LED 1800-3000K WD Spot DE Black Matt
14070909
M-LED Module 70 1x LED 1800-3000K WD Spot DE White Structure
14071002
M-LED Module 70 1x LED 1800-3000K WD Medium DE Black Matt
14071009
M-LED Module 70 1x LED 1800-3000K WD Medium DE White Structure
14071102
M-LED Module 70 1x LED 1800-3000K WD Flood DE Black Matt
14071109
M-LED Module 70 1x LED 1800-3000K WD Flood DE White Structure

3. Installation Accessories
  1. False Ceiling/Wall
  2. Structural Ceiling/Wall
  3. Floor
  1. Acoustic Tiles
  2. Plaster Board
  3. Stretched Fabric
  4. Wood

Be aware! Not suitable for 'Acoustic Tiles'

Plaster Kit
Required

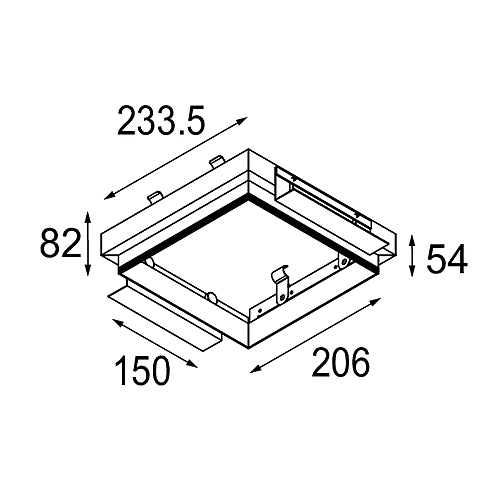

Plaster Kit

10460430
Plaster Kit Trimless 233x233 - 206x206 4x

Be aware! Not suitable for 'Stretched Fabric'

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
  1. Exposed Brick
  2. Exposed Concrete
  3. Plastered Brick/Concrete

Be aware! Not suitable for 'Exposed Brick'

Be aware! Not suitable for 'Exposed Concrete'

Installation Housing

Installation Housing

10440430
Installation Housing 237x258x130
  1. Concrete
  2. Tile
  3. Wood

Be aware! Not suitable for 'Concrete'

Be aware! Not suitable for 'Tile'

Be aware! Not suitable for 'Wood'

4. Smart Lighting Accessories
Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI

Downloads

Download all
  • Datasheet
  • Installation instructions
  • SKP file
  • OBJ file
  • FBX files
  • CAD 3D files
  • Line drawings
    • REACH_MINI-MULTIPLE_06.pdf
    • CE_13131309_04.pdf
    • UKCA_13131309_02.pdf
    • CAD3D_131313XX_MINI-MULTIPLE-TRIMLESS-FOR-LED_V0.dwg
    • SKP_131313XX_MINI-MULTIPLE-TRIMLESS-FOR-LED_01.skp
    • OBJ_131313XX_MINI-MULTIPLE-TRIMLESS-FOR-LED_01.obj
    • 3DS_131313XX_MINI-MULTIPLE-TRIMLESS-FOR-LED_01.3ds
    • FBX_131313XX_MINI-MULTIPLE-TRIMLESS-FOR-LED_01.fbx
