Mini-Multiple Smart Ring Recessed Adjustable 2x

12525005
LED 2700K DE Aluminium Matt - Black Matt
500mA 14.4Vf 7.2W 707lm 77lm/W CRI90
2700K LED Remote Driver Excluded
Mini-Multiple Smart Ring Recessed Adjustable 2x
Datasheet Technical support
Request a quote
Specifications
1 Led Drivers 2 Installation Accessories 3 Optical Accessories 4 Smart Lighting Accessories
Compatible with Downloads

Specifications

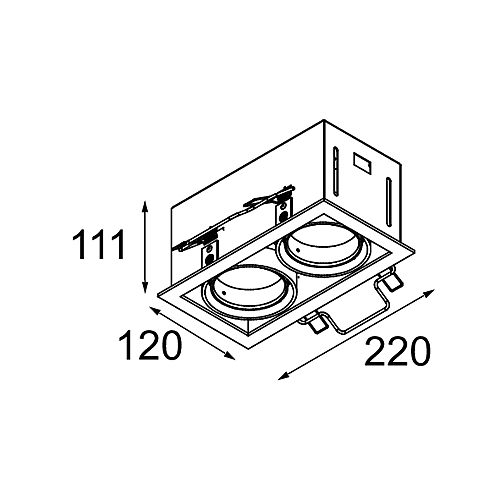

LINED_12521XXX_REC_MINI-MULTIPLE FOR SR_LED 900lm_V0.pdf
Cut-Out Size (mm)
L 210 W 110
Mounting Depth (mm)
120
Light Source Type
LED
Lamp Included
Yes
Input Voltage
Constant current driver required
IP Rating
20
LED Type
LED COB
Light Sources
2
Colour Temperature
2700K
Binning (SDCM)
2
Lifetime
L80B20 @50,000 Hours
CIE Flux Code
100, 100, 100, 100, 95
Electrical Class
III
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
V -35°/+35°
Gross Weight (g)
1270
Net Weight (g)
1140
Drive Current (mA)
350 500
Delivered Lumens (lm)
526 707
LED Connected Load (W)
5 7.2
Min. LED Fwd Voltage (Vf)
13.2 13.7
Max. LED Fwd Voltage (Vf)
15 15.4
Efficacy (lm/W)
85 77
Glare Rating (UGR)
13 14
Modular logo Go to top 1 Led Drivers 2 Installation Accessories 3 Optical Accessories 4 Smart Lighting Accessories

1. Led Drivers

Required
500mA
Article no. Driver Fitting the cut-out hole Min products Max products Dimension
11630130 LED Driver Constant Current Deep Dim DALI 500mA 20W 1 1 160 x 41.5 x 30.5
11630430 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 20W 1 1 160 x 41.5 x 30.5
11630730 LED Driver Constant Current Deep Dim DALI 500mA 50W 2 LED Output 1 2
152.5 x 76.2 x 30.1
11631030 LED Driver Constant Current Deep Dim 0-10V/1-10V 500mA 50W 2 LED Output WD 1 2
152.5 x 76.2 x 30.1
12400330 LED Driver Constant Current Trailing Edge/Push-Dim 350-700mA 17-32W 1 1 166 x 46 x 34
12403430 LED Driver Constant Current Non-Dim 350-1050mA 25-50W 1 2 124 x 79 x 22
12404330 LED Driver Constant Current Trailing Edge 500mA 20W 1 1 111 x 52 x 22
12405630 LED Driver Constant Current DALI 300-1050mA 16-36W 1 1 146.5 x 44 x 30
12406530 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W WD 1 2 124 x 79 x 22
12406630 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W WD 1 2 124 x 79 x 22
12406730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 350-1050mA 25-60W 1 2 124 x 79 x 22
12406830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 350-1050mA 25-60W 1 2 124 x 79 x 22
12407130 LED Driver Constant Current 0-10V/1-10V 300-1050mA 16-36W 1 1 146.5 x 44 x 30
12407630 LED Driver Constant Current DALI 250-900mA 10-20W 1 1 110.4 x 52 x 22
12407730 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W 1 1 110.4 x 52 x 22
12407830 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 28-60W 1 3 124 x 79 x 22
12407930 LED Driver Constant Current DALI 250-700mA 10-20W WD 1 1 110.4 x 52 x 22
12408030 LED Driver Constant Current 0-10V/1-10V/Push-Dim 250-900mA 13-20W WD 1 1 111 x 52 x 22
12408130 LED Driver Constant Current DALI 250-700mA 15-32W WD 1 1 103 x 67 x 21
12408330 LED Driver Constant Current 0-10V/1-10V/Push-Dim/DALI 250-700mA 30-50W WD 1 3 124 x 79 x 22
13470030 LED Driver Constant Current Casambi 300-1050mA 16-38W 1 1 146.5 x 44 x 30
13470130 LED Driver Constant Current Casambi 350-1050mA 25-60W 1 2 124 x 79 x 22
13630100 LED Driver Constant Current Zigbee 350-1050mA 25-60W 1 2 124 x 79 x 22
Show more

2. Installation Accessories
  1. False Ceiling/Wall
  2. Structural Ceiling/Wall
  3. Floor
  1. Acoustic Tiles
  2. Plaster Board
  3. Stretched Fabric
  4. Wood

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.
  1. Exposed Brick
  2. Exposed Concrete
  3. Plastered Brick/Concrete

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Suitable for this application. No installation accessories required. Follow installation instructions to see how to recess the product.

Installation Housing

Installation Housing

10400230
Installation Housing 257x222x147
Plaster Kit

Plaster Kit

10420230
Plaster Kit 240x287 - 210x110 1x
  1. Concrete
  2. Tile
  3. Wood

Be aware! Not suitable for 'Concrete'

Be aware! Not suitable for 'Tile'

Be aware! Not suitable for 'Wood'

3. Optical Accessories
Smart Frontring Cake
Required

Smart Frontring Cake

12554002
Frontring Smart Cake Medium Black Matt
12554009
Frontring Smart Cake Medium White Structure
12554102
Frontring Smart Cake Flood Black Matt
12554109
Frontring Smart Cake Flood White Structure
12554202
Frontring Smart Cake Spot Black Matt
12554209
Frontring Smart Cake Spot White Structure
Smart Frontring Flat
Required

Smart Frontring Flat

12553002
Frontring Smart Flat Medium Black Matt
12553009
Frontring Smart Flat Medium White Structure
12553102
Frontring Smart Flat Flood Black Matt
12553109
Frontring Smart Flat Flood White Structure
12553202
Frontring Smart Flat Spot Black Matt
12553209
Frontring Smart Flat Spot White Structure
Smart Frontring Kup
Required

Smart Frontring Kup

12556002
Frontring Smart Kup Medium Black Matt
12556009
Frontring Smart Kup Medium White Structure
12556102
Frontring Smart Kup Flood Black Matt
12556109
Frontring Smart Kup Flood White Structure
12556202
Frontring Smart Kup Spot Black Matt
12556209
Frontring Smart Kup Spot White Structure
Smart Frontring Lotis
Required

Smart Frontring Lotis

12555002
Frontring Smart Lotis Medium Black Matt
12555009
Frontring Smart Lotis Medium White Structure
12555102
Frontring Smart Lotis Flood Black Matt
12555109
Frontring Smart Lotis Flood White Structure
12555202
Frontring Smart Lotis Spot Black Matt
12555209
Frontring Smart Lotis Spot White Structure

4. Smart Lighting Accessories
Casambi Module

Casambi Module

13470100
Dim Module Casambi 1-10V
13470101
Dim Module Casambi Trailing Edge
13470102
Dim Module Casambi DALI
Casambi Switch

Casambi Switch

13470109
Switch Casambi White
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 0-10V/1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000152
Switch Dimmer Hue White
70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White
Zigbee Module

Zigbee Module

13630200
Dim Module Zigbee DALI
