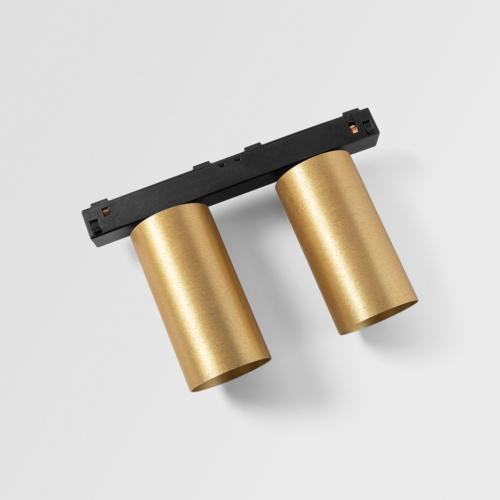

Minude Track 48V Adjustable 45 2x
11460441
LED 2700K Medium 1-10V Champagne Brushed Anodised
Specifications
Specifications
- Light Source Type
- LED
- Lamp Included
- Yes
- Input Voltage
- 48vdc
- IP Rating
- 20
- LED Type
- LED COB
- Light Sources
- 2
- Colour Temperature
- 2700K
- Binning (SDCM)
- 2
- Lifetime
- L80B20 @50,000 Hours
- Measured Beam Angle (°)
- 29.6
- CIE Flux Code
- 99, 100, 100, 100, 73
- Electrical Class
- III
- Dimming Protocol
- 1-10v
- Glow Wire Rating
- 960°C
- Indoor/Outdoor
- Indoor
- Adjustability
- H 360° v 0°/+90°
- Gross Weight (g)
- 566
- Net Weight (g)
- 421
- Delivered Lumens (lm)
-
605 - Luminaire Power (W)
-
20 - Efficacy (lm/W)
-
61 - Glare Rating (UGR)
-
5
- 3500K and 4000K on request
- White Pista 48V luminaires have a white track adapter. All other Pista 48V luminaires have a black track adapter. Deviation from this is only possible on request.
- This Track 48V luminaire can not be used in the upper part of a Pista Track 48V Profile Suspended Up/Down.
1. Smart Lighting Accessories
1. Smart Lighting Accessories
Hue Module
13190230
Hue Sensor
70000191
70008054
Hue Switch
70000152
70000154
70000155
70000213
70000214
70000223
Downloads
Downloads
- Datasheet
- Installation instructions
- LDT files
- IES files
- POLAR files
- Tender text
- CAD 3D files
- Line drawings
-
- CAD3D_114604XX_SURF_MINUDE-45-TRACK-2XLED_01.dwg
- CAD2D_SURF_MINUDE_03.dwg
- OBJ_114604XX_SURF_MINUDE-45-TRACK-2XLED_01.obj
- FBX_114604XX_SURF_MINUDE-45-TRACK-2XLED_01.fbx
- SKP_114604XX_SURF_MINUDE-45-TRACK-2XLED_01.skp
- 3DS_114604XX_SURF_MINUDE-45-TRACK-2XLED_01.3ds
- OBJ_114604XX_SURF_MINUDE-45-TRACK-2XLED_01.obj
- SKP_114604XX_SURF_MINUDE-45-TRACK-2XLED_01.skp
- 3DS_114604XX_SURF_MINUDE-45-TRACK-2XLED_01.3ds
- FBX_114604XX_SURF_MINUDE-45-TRACK-2XLED_01.fbx
