  1. Go back
Click to share

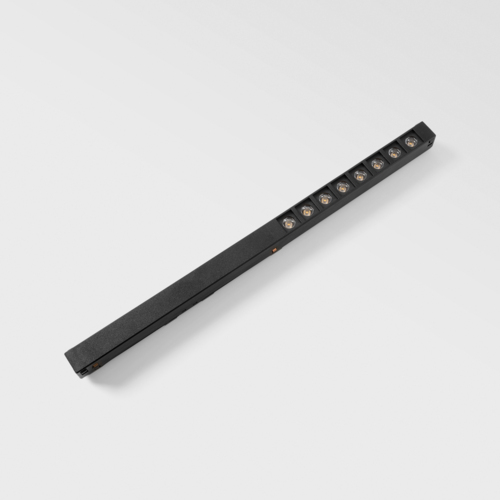

Pista Linear Spots Track 48V 302 1x

13461032
LED 2700K Medium 1-10V Black Structure
9W 710lm 78lm/W CRI90
2700K LED Medium (20-30°) Driver Included
Pista Linear Spots Track 48V 302 1x
Data sheet Technical support
Request a quote
Specifications Smart Lighting Accessories Compatible with Downloads

Specifications
LINED_134610XX_02.pdf
Light Source Type
LED
Lamp Included
Yes
Input Voltage
48vdc
IP Rating
20
LED Type
LED PCB
Light Sources
1
Colour Temperature
2700K
Binning (SDCM)
3
Lifetime
L90B20 @50,000 Hours
Measured Beam Angle (°)
27.1
CIE Flux Code
97, 100, 100, 100, 82
Electrical Class
III
Dimming Protocol
1-10v
Glow Wire Rating
960°C
Indoor/Outdoor
Indoor
Adjustability
Not applicable
Gross Weight (g)
112
Net Weight (g)
71
Delivered Lumens (lm)
710
Luminaire Power (W)
9
Efficacy (lm/W)
78
Glare Rating (UGR)
15
  • 3500K on request
  • White Pista Track 48V linear modules come with a white track adapter. All other Pista Track 48V linear modules have a black track adapter. Exceptions are only possible on request.

1. Smart Lighting Accessories
Hue Bridge

Hue Bridge

70000616
Bridge Hue EU White
70000617
Bridge Hue UK White
Hue Module

Hue Module

13190230
Dim Module Hue 1-10V 150-300W
Hue Sensor

Hue Sensor

70000191
Motion Sensor Hue Outside Black
70008054
Motion Sensor Hue White
Hue Switch

Hue Switch

70000152
Switch Dimmer Hue White
70000154
Switch Niko Pure Hue White Steel
70000155
Switch Niko Pure Hue Black Steel
70000213
Switch Smart Button Hue White
70000214
Switch Wall Module Hue
70000223
Switch Dimmer Hue White

Compatible with

Show
Show
  • +1

Pista Track 48V High Surface

  • +1

Pista Track 48V High Suspended

  • +1

Pista Track 48V High Suspended Up/Down

Pista Track 48V Recessed

Pista Track 48V Recessed Trimless

  • +1

Pista Track 48V Surface

  • +1

Pista Track 48V Suspended

Downloads

Download all
  • Datasheet
  • Installation instructions
  • LDT files
  • IES files
  • POLAR files
    • CRI_3017381_PISTA-SPOT_935.JPG
    • CRI_3016176_PISTA-SPOT_927.jpg
    • CRI_3016178_PISTA-SPOT_930.jpg
    • TM30_3016178_PISTA-SPOT_930.jpg
    • TM30_3017381_PISTA-SPOT_935.JPG
    • TM30_3016176_PISTA-SPOT_927.jpg
  • Tender text
  • SKP file
  • OBJ file
  • FBX files
  • CAD 3D files
  • Line drawings
    • CAD3D_134610XX_SURF_PISTA-LINEAR-SPOTS-8X_01.dwg
    • SKP_134610XX_SURF_PISTA-LINEAR-SPOTS-8X_01.skp
    • OBJ_134610XX_SURF_PISTA-LINEAR-SPOTS-8X_01.obj
    • 3DS_134610XX_SURF_PISTA-LINEAR-SPOTS-8X_01.3ds
    • FBX_134610XX_SURF_PISTA-LINEAR-SPOTS-8X_01.fbx
    • ELABEL_PistaLinearSpot8x_2700K.pdf
    • ELABEL_PistaLinearSpot8x_3000K.pdf
    • REACH_PISTA LINEAR_06.pdf
    • CE_13461032_04.pdf
    • UKCA_13461032_02.pdf
