Technical overview
Technical overview
Spec sheet
Need technical information about this profile system? Click to download a dedicated spec sheet.- Dimensions
- 35mm x 35mm (h x w)
- Base thickness
- 2mm
- Techniques:
- Ceiling, Wall
- Indoor/Outdoor
- Indoor
- Finish
-
For IP20:
Anodised: aluminium
Brushed anodised: bronze, champagne, silver bronze
Fine structured scratch resistant powder coating: black, white
For IP44:
Anodised: aluminium + RAL supplement - IP rating
- IP20, IP44, only with IP44 flexible LED strip
- Glow Wire Test
- 960°C
- CRI
- 90+
- Warranty
- 5 years on LED lamps, 5 years on drivers
- Linear Lighting module
-
Linear Lighting module:
High power LEDstrip
3000K, 4000K
Non-dimmable, Dali/Pushdim
Linear LED Strip 24V (IP20 or IP44):
LED Strip
2700K, 3000K, 4000K
Non-dimmable, 1-10V, Dali/Pushdim
Base Profile And Diffusor SLD35 Recessed

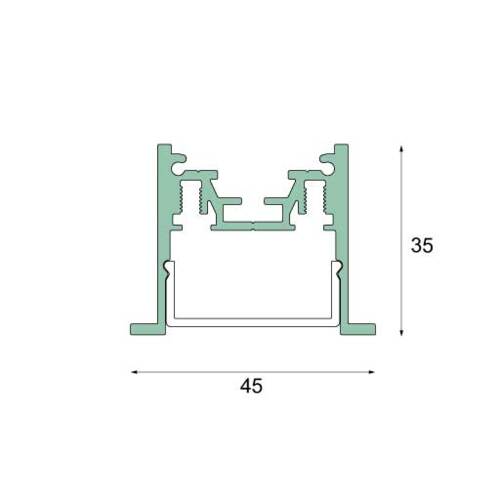

This profile system consists of an extruded base with a PMMA diffuser. The base profile is merely 2mm thick and made of aluminium to ensure minimum weight, strength and durability. It comes with a maximum extruded length of 4 meters, thus offering the double benefit of preventing bending during transportation and making the profile easy to handle during installation.
BASE PROFILE SLD35 RC
Dif In SLD35
Linear light modules
Linear light modules
Linear LED strip 24V Mounted
Basic specs
- 2700K, 3000K, 4000K
- Non-dimmable, 1-10V, Dali/Pushdim
- 1000lm/m, 2000lm/m
Downloads
Downloads
- Data sheet
- Tender text
-
- LDT_93460005_PROF_SLD35_06.zip
- IES_93460005_PROF_SLD35_06.zip
- POLB_93000040_93460005_PROF_SLD35_LED-STRIP-3600lm-4K_1M_01.Jpg
- POLB_93000039_93460005_PROF_SLD35_LED-STRIP-3600lm-3K_1M_01.Jpg
- POLB_93000038_93460005_PROF_SLD35_LED-STRIP-3600lm-27k_1M_01.Jpg
- POLB_934600XX_93000048_PROF_SLD35-LED-3000K_1000MM_02.Jpg
- POLB_934600XX_93000013_PROF_SLD35-LED-2700K_1000MM_02.Jpg
- POLB_934600XX_93000015_PROF_SLD35-LED-4000K_1000MM_02.Jpg
- POLB_934600XX_93000014_PROF_SLD35-LED-3000K_1000MM_02.Jpg
- POLB_934600XX_93000047_PROF_SLD35-LED-2700K_1000MM_02.Jpg
- POLB_934600XX_93000049_PROF_SLD35-LED-4000K_1000MM_02.Jpg
- UKCA declarations
- Declarations
