SLD50 High Recessed Made To Measure

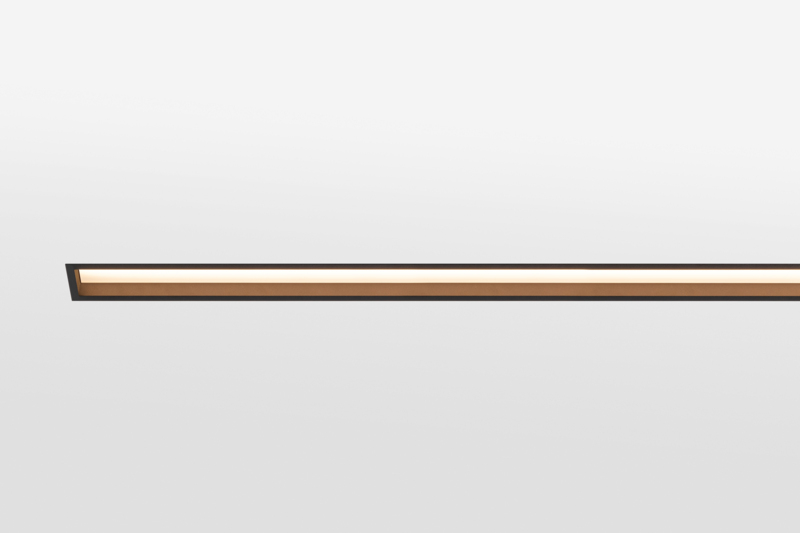

A member of our popular SLD family, SLD50 High Recessed is a thin, attractive (50 mm wide) profile. Its deep-recessed light source makes it a serious candidate for lighting with visual comfort. To complement its linear light, add Modular L.I.’s Eyeball, a small yet powerful, adjustable spot.

Spec sheet Configure now

Technical support

Technical overview

Spec sheet

Need technical information about this profile system? Click to download a dedicated spec sheet.

Download

Dimensions: 100mm x 50mm (h x w)
Base thickness: 1.5mm
Techniques:: Ceiling recessed
Indoor/Outdoor: Indoor
Finish: Anodised: aluminium
Fine structured scratch resistant powder coating: black, white
IP rating: IP20

Glow Wire Test: 960°C
CRI: 90+
Warranty: 5 years on LED lamps, 5 years on drivers
Linear Lighting module: High power LED line
2700K, 3000K, 4000K, 2700K-6500K tunable white
Non-dimmable, Dali/Pushdim: Flicker-free (AM dimming)
Available in preset dimmed version 50%
Spot Lighting module: LED Array
Medium (25°), Flood (40°)
2700K, 3000K, 4000K
Trailing edge, 1-10V, Dali/Pushdim

Base Profiles
Profile Covers
Diffusers

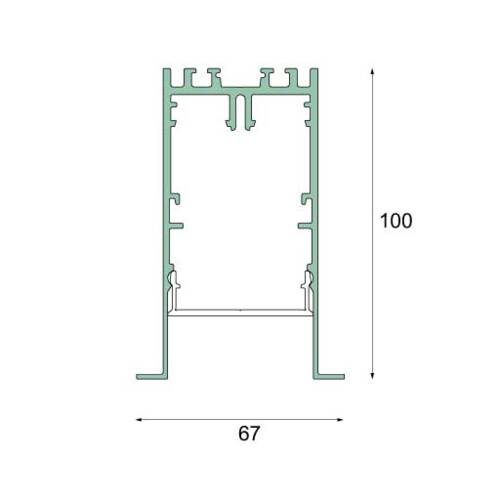

Base Profile SLD50 High Recessed

This base profile is merely 1.5mm thick and made of aluminium to ensure minimum weight, strength and durability. It comes with a maximum extruded length of 4 meters, thus offering the double benefit of preventing bending during transportation and making the profile easy to handle during installation.

Cover SLD50

This aluminium cover matches the material of the base profile to ensure a consistent look. Click in-and-out, even after installation, to remove it without having to dismount the profile. The cover comes in a selection of colours to offer the choice of adding an accent or going monochrome for a more understated look.

Diffuser Poly In SLD50

The Poly In diffuser is flush mounted against the cover for a seamless design. Made of polycarbonate, this is a durable diffuser which keeps its quality over time. Click it-in and out for an easy installation and dismounting.

Diffuser Prismatic SLD50

Prismatic diffusers offer maximum reduction of glare and improve the UGR rating profiles. Made of polycarbonate, this is a durable diffuser which keeps its quality over time. Click it-in and out for an easy installation and dismounting.

Made to measure. Made for you.

Profiles systems are made-to-measure to give you the possibility to match perfectly the requirements of your project. Choose a base profile, add lighting modules, accessories and controls to make profile systems work just the way you want. Start configuring and discover them all.

Configure now

Modupoint system

Modupoint LED

Basic specs

Combine with Marbulito Jack, Marbulito Jack Suspended, Medard Jack, Minude Jack, Minude Jack Suspended
2700K, 3000K, 4000K (on request), Warm Dim
Trailing Edge, 1-10V/Pushdim, Dali
