Technical overview
Technical overview
Spec sheet
Need technical information about this profile system? Click to download a dedicated spec sheet.- Dimensions
- 80mm x 50mm (h x w)
- Base thickness
- 1.5mm
- Techniques:

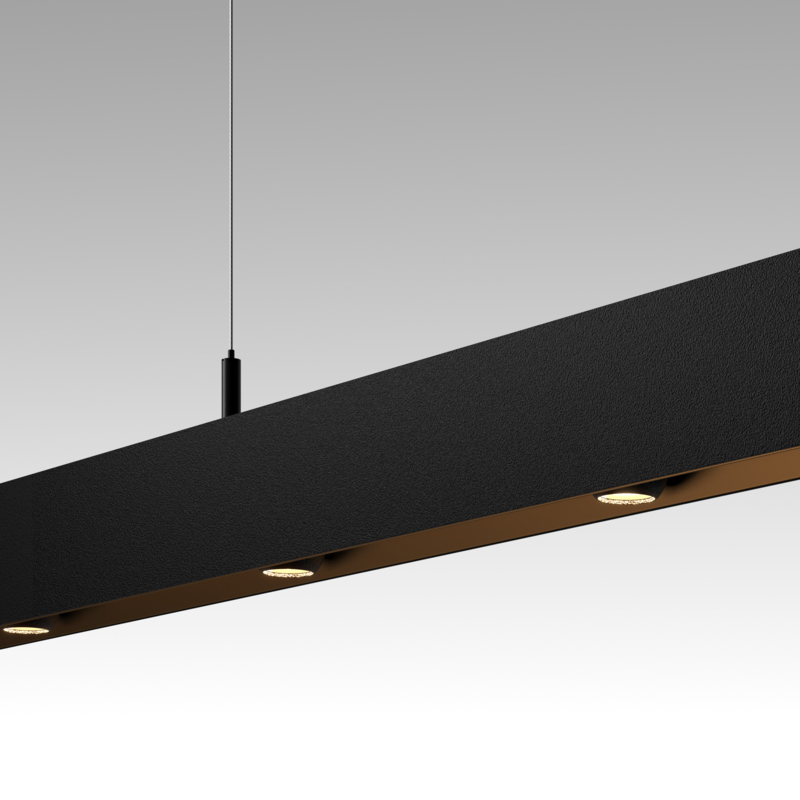

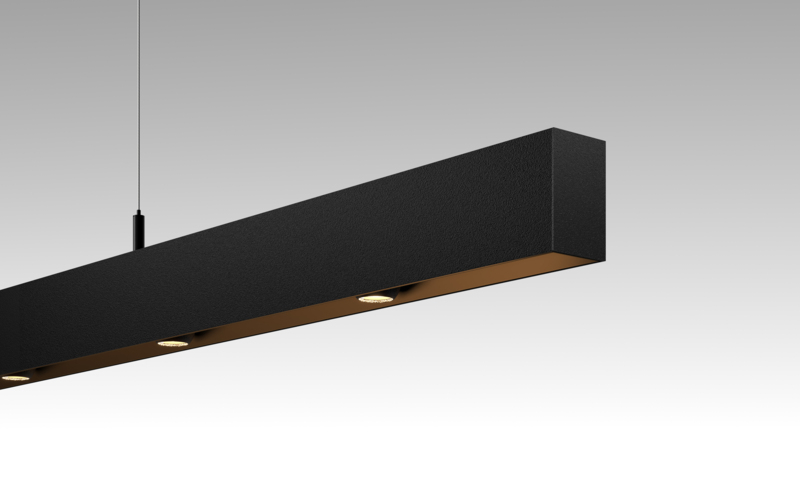

- Ceiling suspended
- Indoor/Outdoor
- Indoor
- Finish
-
Anodised: aluminium
Brushed anodised: bronze, champagne, silver bronze
Fine structured scratch resistant powder coating: black, white - IP rating
- IP20
- Glow Wire Test
- 960°C
- CRI
- 90+
- Warranty
- 5 years on LED lamps, 5 years on drivers
- Linear Lighting module
-
Medium power LED line
2700K, 3000K, 4000K
Non-dimmable, 1-10V, Dali/Pushdim - Spot Lighting module
-
LED Array
Medium (25°)
2700K, 3000K
Trailing edge, 1-10V, Dali/Pushdim
Base Profile SLD50
This base profile is merely 1.5mm thick and made of aluminium to ensure minimum weight, strength and durability. It comes with a maximum extruded length of 4 meters, thus offering the double benefit of preventing bending during transportation and making the profile easy to handle during installation.

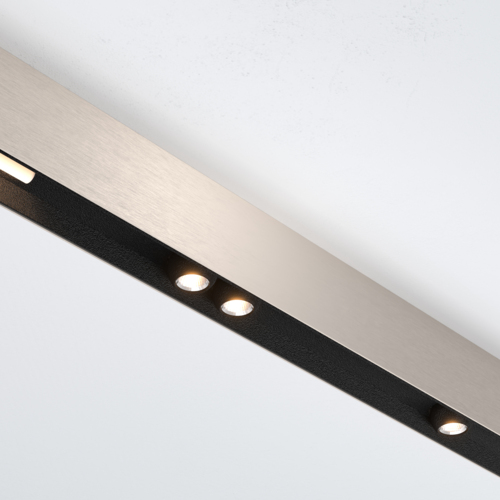

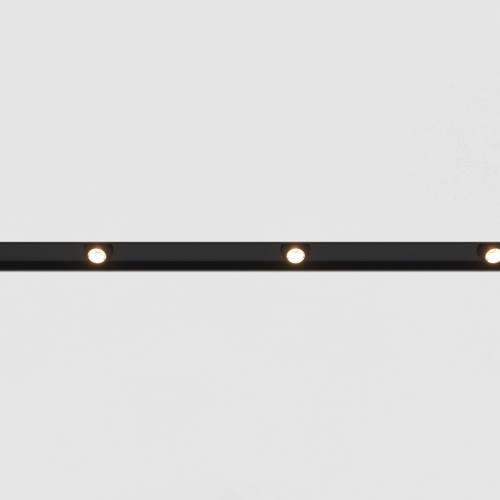

Inner Cover SLD50 Naked
The aluminium cover of SLD50 Naked looks like a profile recessed within the base profile, thus giving its distinct design. Thanks to the fact that the lighting modules are directly mounted on it, it's easier to install and maintain by simply clicking-it on and off the base profile. Add an accent by choosing a different colour or go monochrome for a more understated look.
Modupoint system
Modupoint system
Modupoint LED
Basic specs
- Combine with Marbulito Jack, Marbulito Jack Suspended, Medard Jack, Minude Jack, Minude Jack Suspended
- 2700K, 3000K, 4000K (on request), Warm Dim
- Trailing Edge, 1-10V/Pushdim, Dali
Spotlight modules
Spotlight modules
Modupoint LED Stick
Basic specs
- Available in lengths of 10, 20 and 30cm
- Combine max. 4 sticks on top of eachother

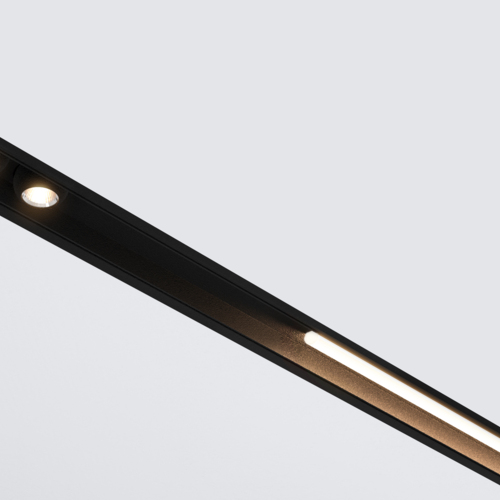

Eyeball 1x
Basic specs
- 2700K, 3000K, 4000K (not available for SLD50 Naked)
- Trailing edge, 1-10V, Dali/Pushdim
- 523lm (2700K) 544lm (3000K) 595lm (4000K)
Eyeball 2x
Basic specs
- 2700K, 3000K, 4000K (not available for SLD50 Naked)
- Trailing edge, 1-10V, Dali/Pushdim
- 622lm (2700K), 622lm (3000K)
Marbulito Jack Adjustable 41 1x
Basic specs
- 2700K, 3000K
- 1-10V, Pushdim, DALI and Trailing Edge
- 322lm (2700K), 702lm (3000K)
- Modupoint LED Stick required when used with SLD50 High and SLD50 Naked
Marbulito Jack Suspended 41 1x
Basic specs
- 2700K, 3000K
- 1-10V, Pushdim, DALI and Trailing Edge
- 322lm (2700K), 702lm (3000K)

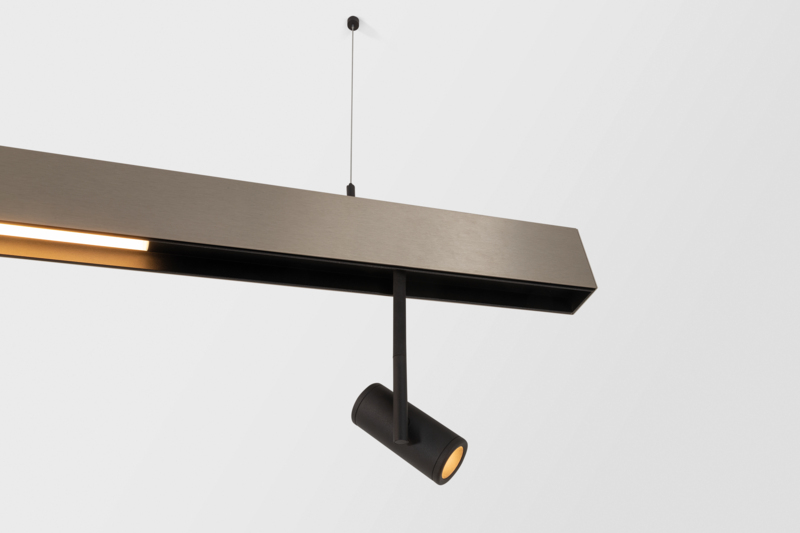

Medard Jack Adjustable 42 1x
Basic specs
- 2700K, 3000K, 1800-3000K (Warm Dim)
- 1-10V, Pushdim, DALI and Trailing Edge
- 681lm (2700K), 695lm (3000K), 367lm (1800-3000K)
- Modupoint LED Stick required when used with SLD50 High and SLD50 Naked
Minude Jack Adjustable 45 1x
Basic specs
- 2700K, 3000K
- 1-10V, Pushdim, DALI and Trailing Edge
- 598lm (2700K), 610lm (3000K)
- Modupoint LED Stick required when used with SLD50 High and SLD50 Naked
Minude Jack Suspended 45 1x
Basic specs
- 2700K, 3000K
- 1-10V, Pushdim, DALI and Trailing Edge
- 598lm (2700K), 610lm (3000K)
Gamin Jack 90 1x
Basic specs
- 2700K, 3000K, 4000K and 1800-3000K (Warm Dim)
- 1-10V, Pushdim, DALI and Trailing Edge
- 676lm (2700K), 702lm (3000K), 365lm (1800-3000K)
- Modupoint LED Stick required when used with SLD50 High and SLD50 Naked
Linear light modules
Linear light modules
Linear LED Naked
Basic specs
- 2700K, 3000K, 4000K
- Non-dimmable, 1-10V, Dali/Pushdim
- 1067lm (2700K), 1090lm (3000K), 1896lm (2700K+), 2010lm (3000K+), 2110lm (4000K+)
Linear LED Strip 24V Uplight Mounted
Basic specs
- 2700K, 3000K, 4000K
- Non-dimmable, 1-10V, Dali/Pushdim
- 1000lm/m, 2000lm/m, 3600lm/m
