Straw 60 Linear Batwing Grid 1260 1x

98653202
LED 2700K DALI DI Black Matt
36.2W 2857lm 79lm/W CRI90
2700K LED Driver Included
Straw 60 Linear Batwing Grid 1260 1x
Datasheet Technical support
Request a quote

Specifications
LINED_936534XX_01.pdf
Colour Temperature
2700K
Light Source Type
LED
Luminaire Power (W)
36.2
Light Sources
1
Input Voltage
230v
Gross Weight (g)
0
IP Rating
20
Lifetime
L95B05 @50,000 Hours
Dimming Protocol
Dali
CIE Flux Code
71, 97, 100, 100, 51
Gross Weight (g)
0
Net Weight (g)
0
Delivered Lumens (lm)
2857
Luminaire Power (W)
36.2
Efficacy (lm/W)
79
Glare Rating (UGR)
22

Downloads

Download all
  • Datasheet
  • LDT files
  • IES files

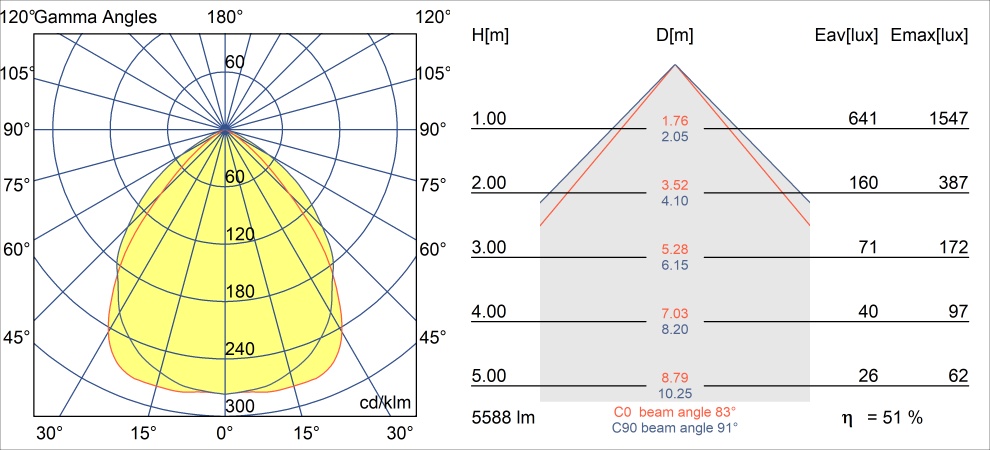

  • POLAR files
    • CRI_1016163_LEDLINE PRO9 930.JPG
    • CRI_1016162_LEDLINE PRO9 927.JPG
    • CRI_1016165_LEDLINE PRO9 940.JPG
    • TM30_1016163_LEDLINE PRO9 930.JPG
    • TM30_1016165_LEDLINE PRO9 940.JPG
    • TM30_1016162_LEDLINE PRO9 927.JPG
  • SKP file
  • OBJ file
  • FBX files
  • CAD 3D files
    • ELABEL_STRAW LEDLINE 2FT PRO9 4000K_01.pdf
    • ELABEL_STRAW LEDLINE 2FT PRO9 2700K_01.pdf
    • ELABEL_STRAW LEDLINE 2FT PRO9 3000K_01.pdf
    • ELABEL_STRAW LEDLINE 2FT PRO9 3500K_01.pdf
  • Line drawings
  • 3DS
  • CAD 2D
  • Declarations
