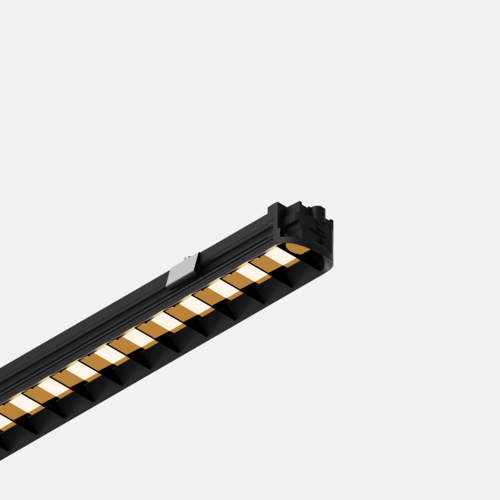

Straw 60 Linear Batwing Grid 1820 1x

98653302
LED 2700K DALI DI Black Matt
55W 4286lm 78lm/W CRI90
2700K LED Driver Included
Straw 60 Linear Batwing Grid 1820 1x
Datasheet Technical support
Request a quote

Specifications
LINED_936535XX_01.pdf
Colour Temperature
2700K
Light Source Type
LED
Luminaire Power (W)
55
Light Sources
1
Input Voltage
230v
Gross Weight (g)
0
IP Rating
20
Lifetime
L95B05 @50,000 Hours
Dimming Protocol
Dali
CIE Flux Code
71, 97, 100, 100, 51
Gross Weight (g)
0
Net Weight (g)
0
Delivered Lumens (lm)
4286
Luminaire Power (W)
55
Efficacy (lm/W)
78
Glare Rating (UGR)
22

Downloads

Download all
  • Datasheet
  • LDT files
  • IES files

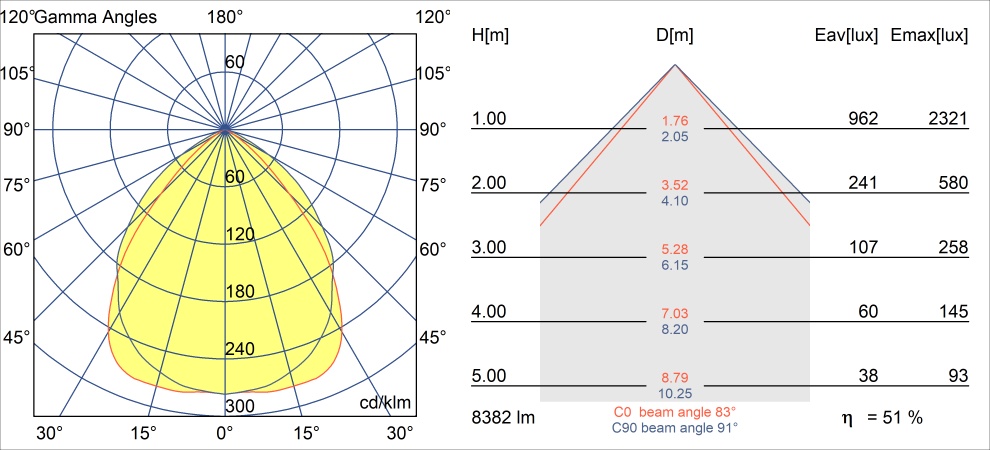

  • POLAR files
    • CRI_1016163_LEDLINE PRO9 930.JPG
    • CRI_1016162_LEDLINE PRO9 927.JPG
    • CRI_1016165_LEDLINE PRO9 940.JPG
    • TM30_1016163_LEDLINE PRO9 930.JPG
    • TM30_1016165_LEDLINE PRO9 940.JPG
    • TM30_1016162_LEDLINE PRO9 927.JPG
  • SKP file
  • OBJ file
  • FBX files
  • CAD 3D files
    • ELABEL_STRAW LEDLINE 2FT PRO9 4000K_01.pdf
    • ELABEL_STRAW LEDLINE 2FT PRO9 2700K_01.pdf
    • ELABEL_STRAW LEDLINE 2FT PRO9 3000K_01.pdf
    • ELABEL_STRAW LEDLINE 2FT PRO9 3500K_01.pdf
    • CE_9865XXXX_04.pdf
    • EPD_STRAW60_LINEAR BATWING GRID 1820_EU_01.pdf
  • UKCA declarations
  • Line drawings
    • 3DS_STRAW 60 LINEAR GRID UP DO END_1820_01.3ds
    • FBX_STRAW 60 LINEAR GRID UP DO END_1820_01.fbx
  • CAD 2D
