Panoramica tecnica

Scheda tecnica

Avete bisogno di informazioni tecniche su questo sistema di profili? Fare clic per scaricare una scheda tecnica dedicata.

Scaricare

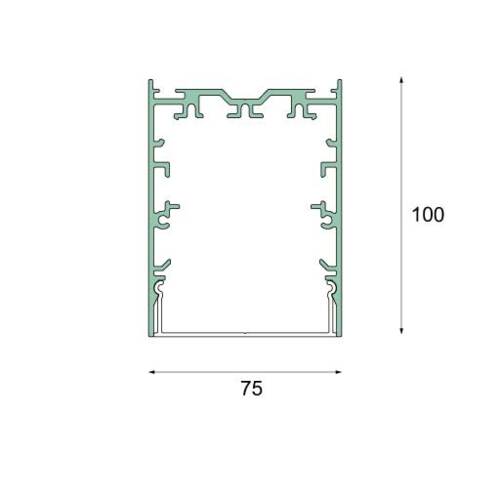

Dimensioni: 100mm x 75mm (h x w)
Spessore della base: 1.5mm
Techniques:: Ceiling
Interno/Esterno: Indoor
Finitura: Anodised: aluminium
Fine structured scratch resistant powder coating: black, white
Grado IP: IP20

Test filo a caldo: 960°C
CRI: 90+
Garanzia: 5 years on LED lamps, 5 years on drivers
Modulo di illuminazione lineare: High power LED line
2700K, 3000K, 4000K
Non-dimmable, Dali/Pushdim: Flicker-free (AM dimming)
Available in preset dimmed version 50%

Base Profile SLD75

This base profile is merely 1.5mm thick and made of aluminium to ensure minimum weight, strength and durability. It comes with a maximum extruded length of 4 meters, thus offering the double benefit of preventing bending during transportation and making the profile easy to handle during installation.

Diffuser PMMA SLD75

This milky diffuser made of PMMA offers maximum lumen output perfect for projects where a lot of light is required.

Diffuser Polycarbonate SLD75

Made of polycarbonate, this is a durable diffuser which keeps its quality over time. Click it-in and out for an easy installation and dismounting.

Diffuser Prismatic SLD75

Prismatic diffusers offer maximum reduction of glare and improve the UGR rating profiles. Made of polycarbonate, this is a durable diffuser which keeps its quality over time. Click it-in and out for an easy installation and dismounting.
